The Reverse Psychology
One of the c'mon questions always revolve around is that is it possible to convert any sort of Electric motor to electric generator. Well the answer is yes except a few which can't. DC motors and generators are ideal machine for this because one can be easily converted to other just by changing the input from Electrical to mechanical or vice-versa.
The normal type or simplest motor that we use in our household is a fan or better if you have an exhaust fan or a table fan rather than a ceiling fan. The electricity when provided to a single phase Induction motor within this fan, it produces torque for the fan to move. But as I said, it is easy to convert a motor to generator just by changing the input from electrical to mechanical, is it possible here in case of a fan? Well yes, and I have made this video to describe how this motor can be used for generating electricity though not useful enough except lighting some LEDs, but this is really a great, fun and simple experiment to try out. Just check it out here and try it yourself. Better if you use an old fan which has been used quite a lot rather than a new one. I will explain how does that works in the coming posts. So, stay tuned and don't forget to SUBSCRIBE OUR BLOG to get notified about our blog update in your E-mail first.

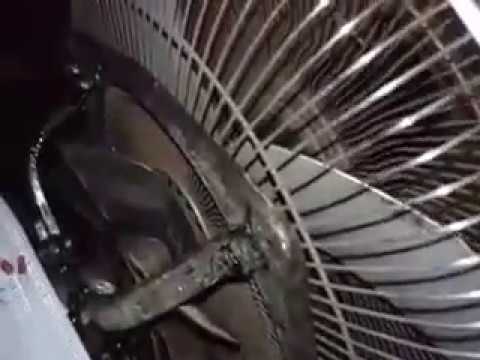

Here's the video on YouTube. Subscribe my channel on YouTube to get good tutorials and DIYs on Electrical Engineering.
Thanks for being here. I hope you enjoyed and learned something new. Let me know your thoughts and views in the comment section below and Subscribe to our blog The Electrical Engr. to get updates on your E-mail first when we add something new up here. Also don't forget to share this post with your friends.
